Overview

This section is dedicated to system design.

What is system design?

System design is a process of defining architecture, components, modules, interfaces, and data for a system to satisfy specified requirements. It is a multi-step process that bridges the gap between business requirements and technical implementation.

Basic concepts

• Scalability: Describes the ability of a system to add or remove resources.
• Consistency: Read operations always return the latest state of the database.
• Availability: Measure of the time a system is operational and available to the users.
• Reliability: Ability of a system to perform its intended functions.
• Agility: Ability of a system to quickly adapt to changes.
• Elasticity: Ability of a system to automatically and dynamically adjust resources based on the demand.
• Fault Tolerance: Ability of a system to continue operating in the event of a failure.
• Disaster Recovery: Ability of a system to recover from a catastrophic event.

Scalability

Scalability describes the ability of a system to add or remove resources.

There are two types of scaling strategies:

1. Vertical Scaling
2. Horizontal Scaling

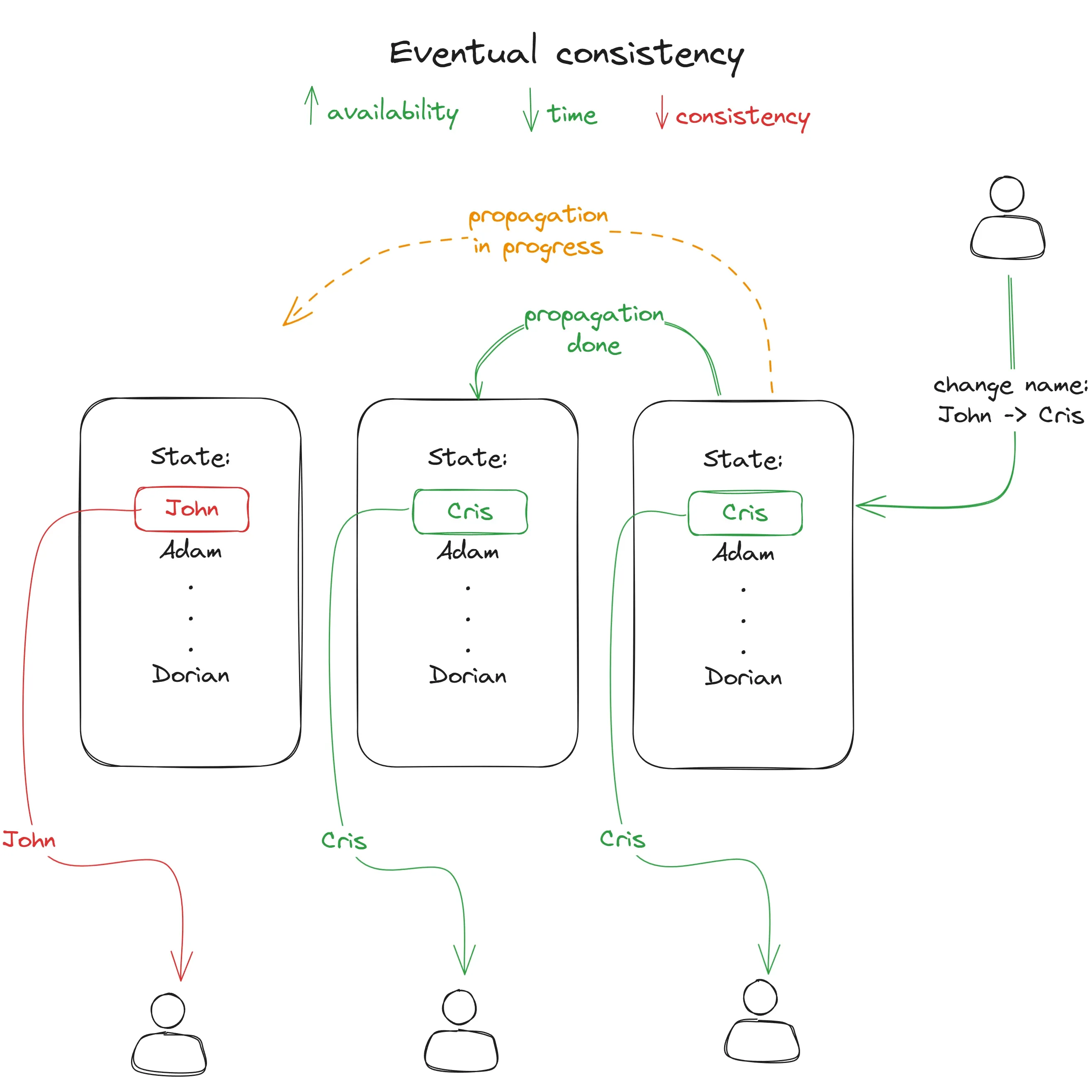

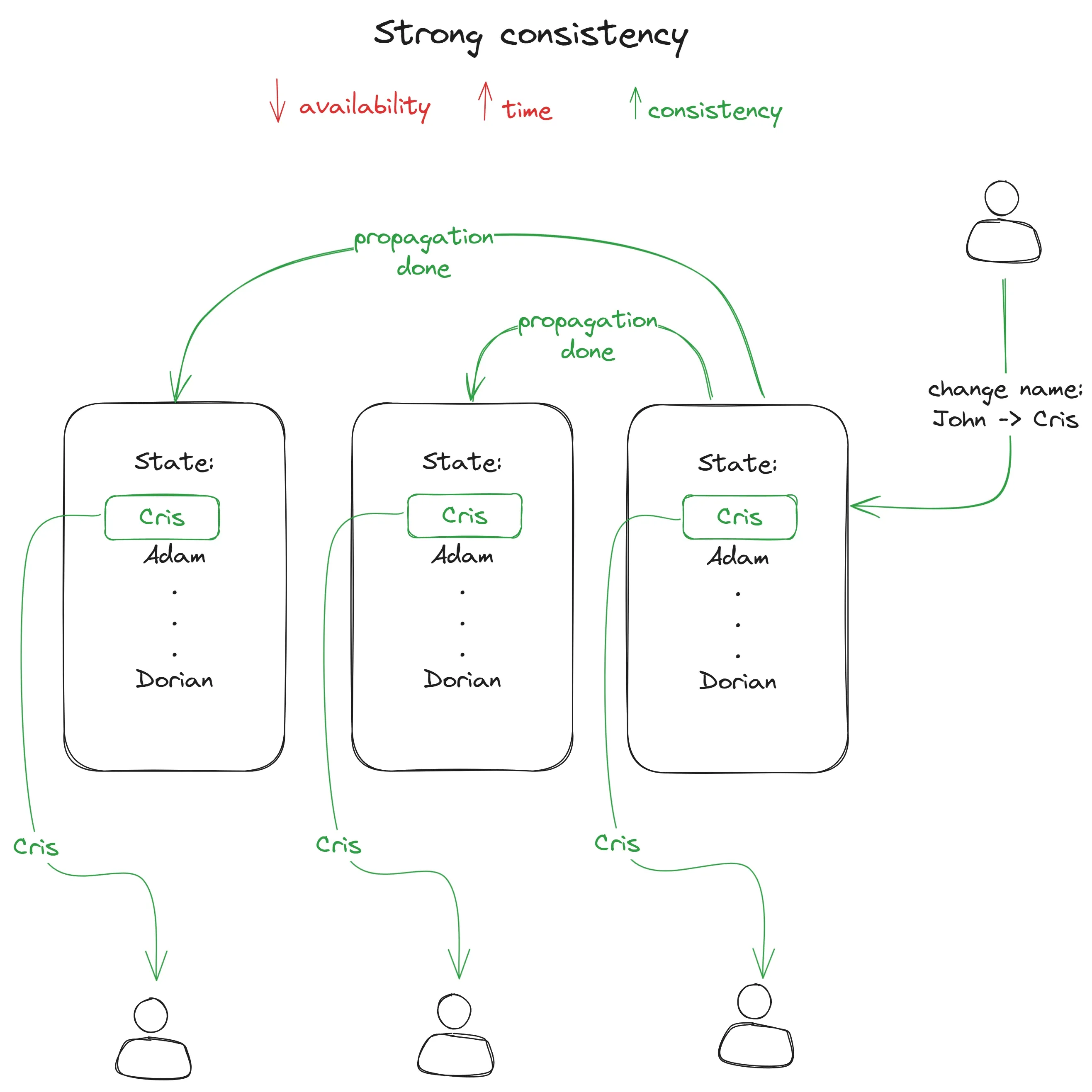

Consistency

Consistency is the property that ensures that read operations always return the latest state of the database.

Availability

Availability is a measure of the time a system is operational and available to the users.

Availability	Downtime per year	Downtime per month	Downtime per week
90%	36.5 days	72 hours	16.8 hours
99%	3.65 days	7.2 hours	1.68 hours
99.9%	8.76 hours	43.2 minutes	10.1 minutes
99.99%	52.6 minutes	4.32 minutes	1.01 minutes
99.999%	5.26 minutes	25.9 seconds	6.05 seconds

Reliability

Reliability is the ability of a system to perform its intended functions.

Agility

Agility is the ability of a system to quickly adapt to changes.

Elasticity

Elasticity is the ability of a system to automatically and dynamically adjust resources based on the demand.

Fault Tolerance

Fault tolerance is the ability of a system to continue operating in the event of a failure.

Disaster Recovery

Disaster recovery is the ability of a system to recover from a catastrophic event.
